Debugging Drupal

You may use Devel Generate to:

• Preview your theme populated with articles, with comments and users.
• Test permissions and workflow with different user roles.
• Demo a site to a client.

The Drupal 7 version contains the Devel Node Access (DNA) module to help you debug access control issues.

In Drupal 8 Devel Node Access is a separate project. To download:

$ composer require 'drupal/devel_node_access-devel_node_access:1.x-dev@dev'

It has not been updated since 2019 and is not fully ported.

The Web Profiler is a port of the Symfony WebProfilerBundle for Drupal.

It has a lot of useful options, including one where it tells you the names of routes.

Read more Joe Fender: Web Profiler in Drupal 8.

Devel helper functions

The basic Devel module provides a set of helper functions that is useful for debugging during mod­ule development.

These are:

• dpm(): Given an object or an array, this function will output a div structure in the message area at the top of your page that will show you the components of these composite types.
• ddm(mixed):
• dpr(): prints arrays as plain text.
• ddebug_backtrace(): prints the function call stack.

To distinguish between different calls to the degel helper functions, you can pass a distinct string in the $name parameter.

Each of these, complete with examples, are discussed below:

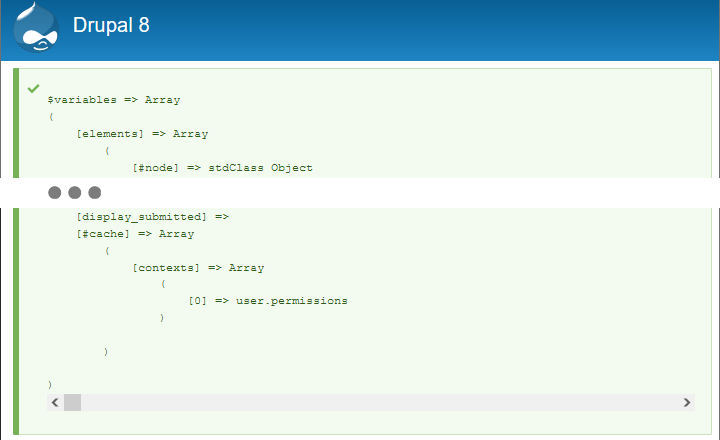

dpm()

This function is a wrapper around the service “devel.dumper” to print a variable to the “message” area of the page (where it is less likely to break the layout of your page). You can use this function to keep track of one or more variables when you’re working on the code running your site.

See the API documentation for details.

dpm($input, $name = NULL);

It was previously called dsm(). A devel module focblock contains this note: "dsm() is a legacy function that was poorly named; use dpm() instead, since the 'p' maps to 'print_r'."

To display a query object constructed by means of db_select and its placeholder arguments, use the following construct:

// Build query object to fetch new nodes.
$query = db_select('node', 'n');
$query->fields('n', array('nid'));
…
dpm((string) $query);
dpm($query->arguments());

In addition to letting you look inside Drupal objects and arrays, the function dpm() can be combined with various PHP debugging functions. For instance to print all defined variables, or to backtrack function calls, use:

dpm(get_defined_vars());
dpm(debug_backtrace());

In Drupal 7, the dpm() function makes use of the Krumo print function kprint_r(). If the debugging information we want to capture exists outside of a page view, we may want to capture it and place it in the system log instead of displaying it directly. The following is an example of this:

$export = kprint_r($array, TRUE, 'object');
watchdog('mymodule', $export);

$export = print_r($array, TRUE);
\Drupal::logger('guidedcustom')->notice('mymodule' . $export);

To see the output from Devel helper functions, the current user need to have the permission “Access developer information” granted.

Devel has its own PHP debug window that can be used for extracting information about your configuration. To access it, go to the path /devel/php on your site.

For example, you may execute the following to see see all field information on your site:

// Show all fields.
dpm(field_info_fields());
// Show all field instances.
dpm(field_info_instances());

This is useful when debugging custom content types created with the Field API.

If you run this to output the variable to the browser in a function that runs before Drupal has bootstrap­ped (e.g. a preprocess function), it will trigger this error: “RuntimeException: Failed to start the session because headers have already been sent". You get the dump, but the site crashes immediately afterwards.

Some claim that using die() after the call to dpm() may save some RAM. Example:

dpm($input, 'mymodule');
die('This may save some RAM');

ddm()

The function ddm() logs any variable to a file named “drupal_debug.txt” below the server’s temp directory (usually /tmp). It is not located directly in the temp directory, but in some automatically named subdirectory. Use find to locate it). All output from this function is appended to the log file, making it easy to see how the contents of a variable change as you modify your code.

You can use it like this:

ddm($variable, $label = NULL);

Which is equicalent to:

$ddumper = \Drupal::service('devel.dumper');
$ddumper->debug($variable, NULL, 'default');

If you’re using Mac OS X you can use the Logging Console to monitor the contents of the log file.

If you’re using a flavor of Linux you can use this command:

$tail -f …/drupal_debug.txt

The -f option, shows new lines appended to the file as it grows.

This does not work inside PHPUnit tests..

Sources:

• DSE: How can I log variables to a txt file?
• DOA: public function DevelDumperManager::debug

In Drupal 7, this was named dd(). It had to be renamed for Symfony-based Drupal, since that function exists in Symfony.

Some Devel functions I have not explored yet

dvm()

The output looks identical to that of dpm().

See the API documentation for details.

dvm($input, $name = NULL);

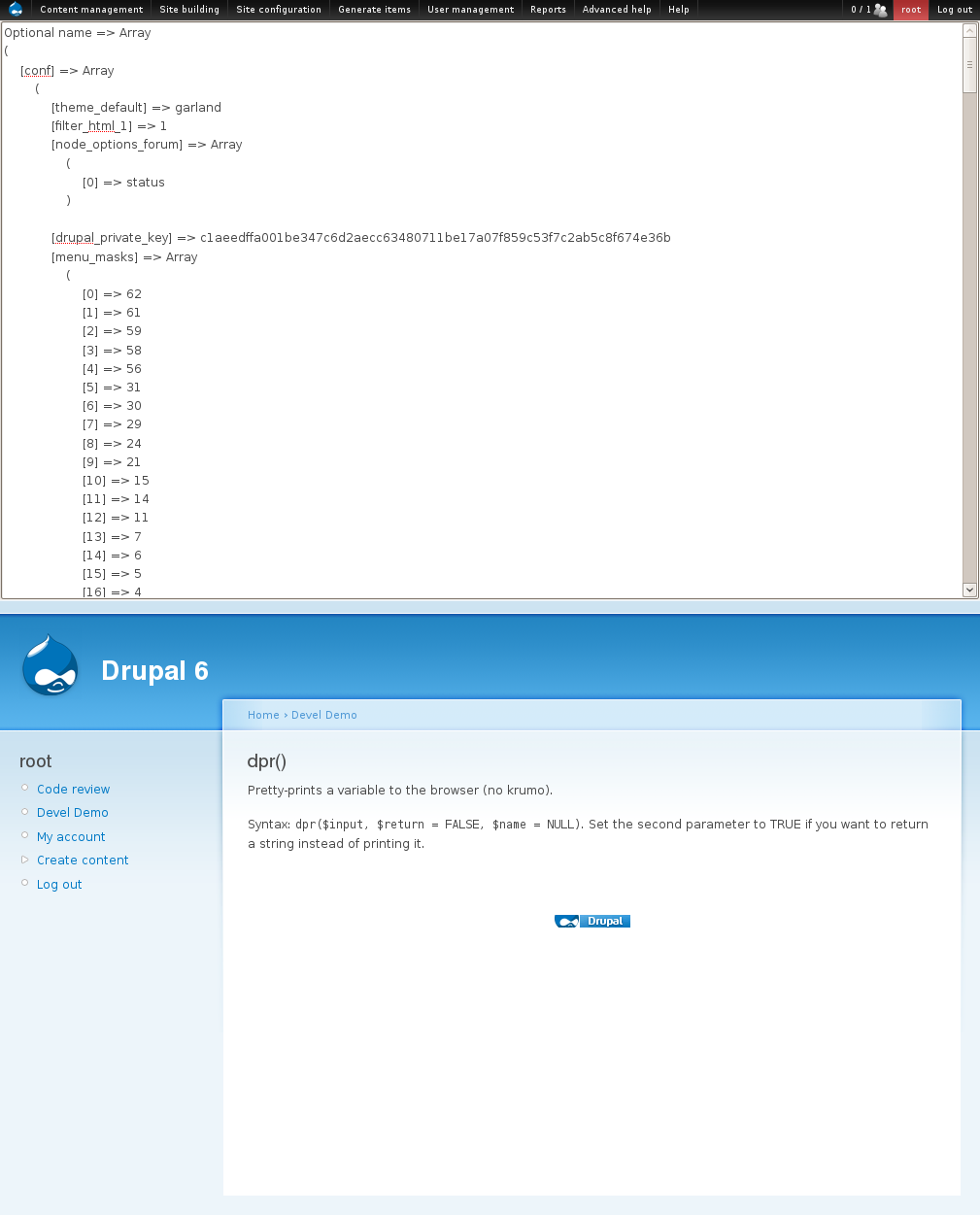

dpr()

dpr($input, $return = FALSE, $name = NULL)

pretty prints arrays.

Pretty-prints a variable to the browser. The output is displayed in the page header, making this a good choice if your theme doesn't print the $messages variable.

dpr($input, $return = FALSE, $name = NULL);

Set the second parameter to TRUE if you want to return a string instead of printing it.

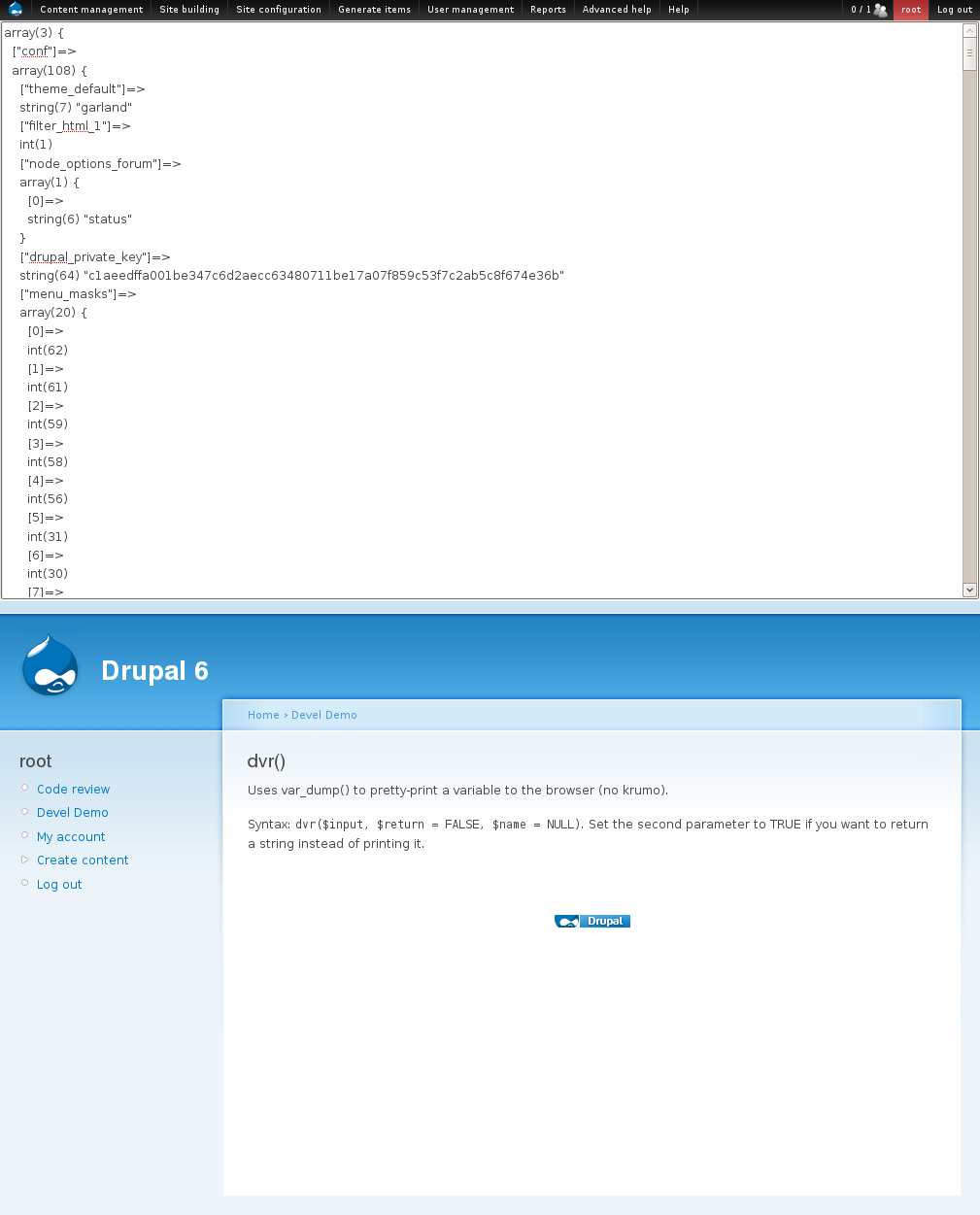

dvr()

Uses var_dump() to pretty-print a variable to the browser. The output is displayed in the page header, making this a good choice if your theme doesn’t print the $messages variable.

dvr($input, $return = FALSE, $name = NULL)

Set the second parameter to TRUE if you want to return a string instead of printing it.

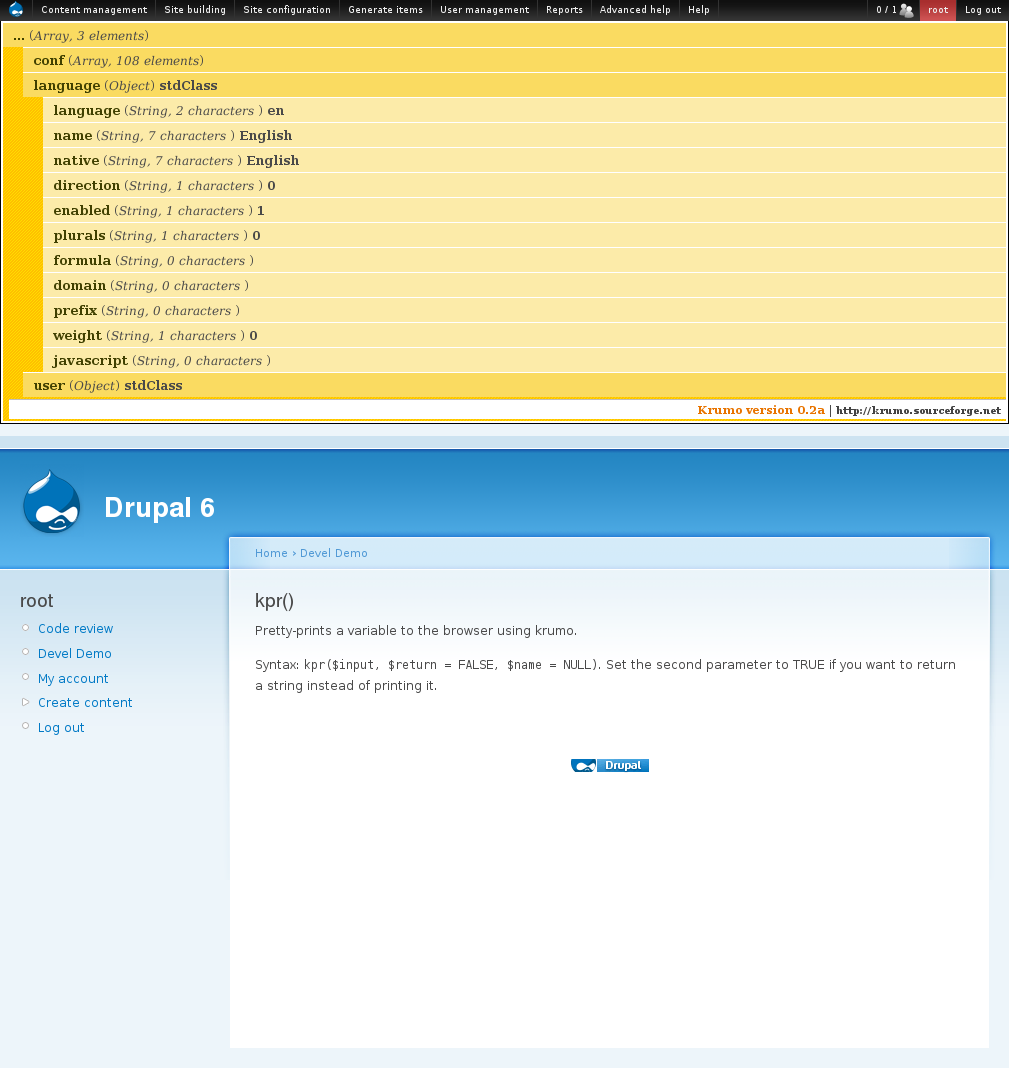

kpr()

Pretty-prints a variable to the browser using [krumo???]. The output is displayed in the page header, making this a good choice if your theme doesn’t print the $messages variable.

kpr($input, $return = FALSE, $name = NULL)

Set the second parameter to TRUE if you want to return a string instead of printing it.

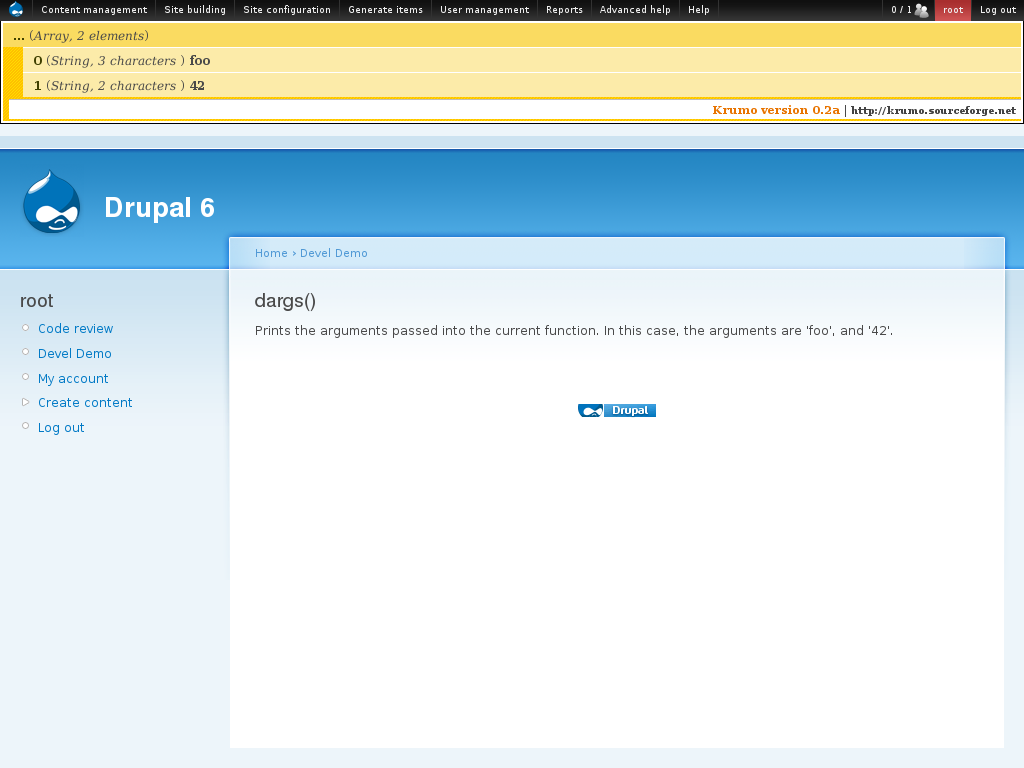

dargs()

Prints the arguments passed into the current function. In this case, the arguments are ‘foo’, and ‘42’. You can use this function if you’re not completely sure of the arguments received by a specific Drupal hook or function in the code you’re working on.

dargs($always = TRUE);

Set the paramter to FALSE to cancel printing if the paramters already has been printed.

See the API documentation for details.

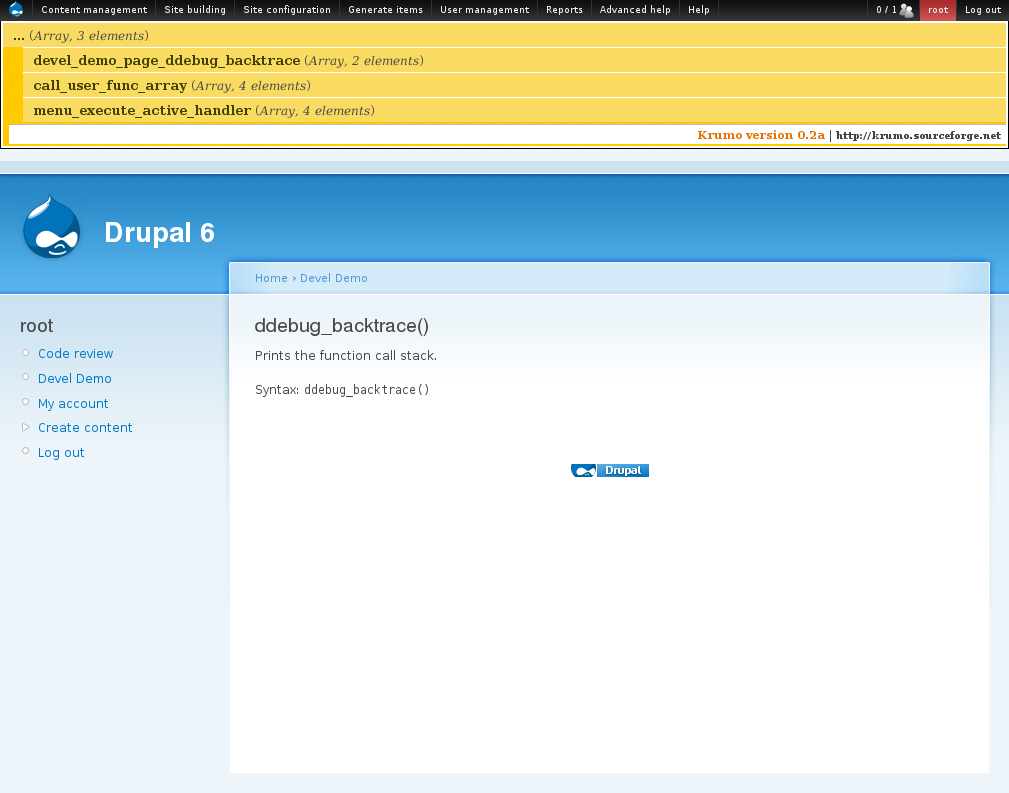

ddebug_backtrace()

Prints the function call stack.

ddebug_backtrace();

PAReview.sh

This is simple Bash script to some static code analysis of a Drupal project. It takes a path to a moduler theme project and checks that. The output is suitable for an attachment in the Project Applications issue queue.

Alternatively, it takes a Git repository URL as an argument, clones the code in a "pareview_temp" folder, and runs some checks.

To install, download the tarball and put it in a global location XXXX

Xdebug

Xdebug is the standard debugger for PHP.

• DO: Xdebug debugger.
• Home page: xdebug.org

drupal-check

github: drupal-check.

Built on PHPStan (PHP Static Analysis Tool). this static analysis tool will check for correctness (e.g. using a class that doesn't exist), deprecation errors, and more. It takes the Drupal context into consideration.

$ composer require mglaman/drupal-check --dev
$ php vendor/bin/drupal-check [OPTIONS] [DIRS]

Here are specific instruction about using it to check for Drupal 9 readiness.

This part is salvaged from Morten Wulff's Drupal 6 page (now 404) and need to checked and updated. It may be oudated.

Outdated documentation

The sections below are probably outdated, but has been retianed until I can find the time to make them current.

XDebug & NetBeans

At the moment this guide is only available for Ubuntu. This part of the guide assumes that you have a running Ubuntu system with Apache, MySQL and PHP installed, and that they are configured to run Drupal locally.

Installation:

• Download and install the PHP version of NetBeans.
• Install the php5-xdebug-package using Ubuntu’s built-in package manager.

Create a project in NetBeans

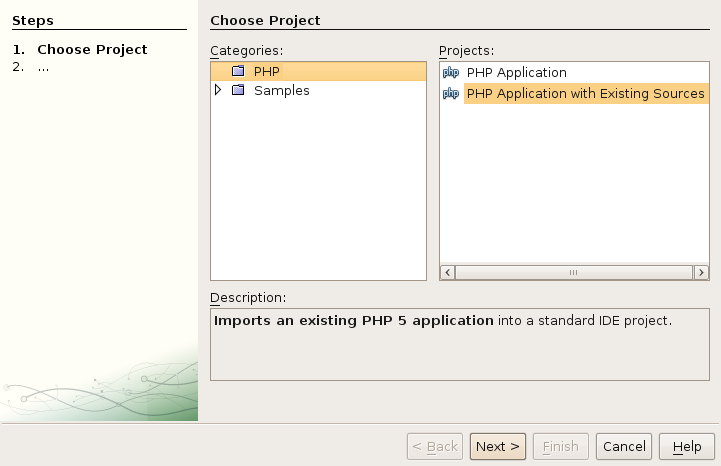

• Choose File → New Project…
• Select PHP Application from Existing Sources.

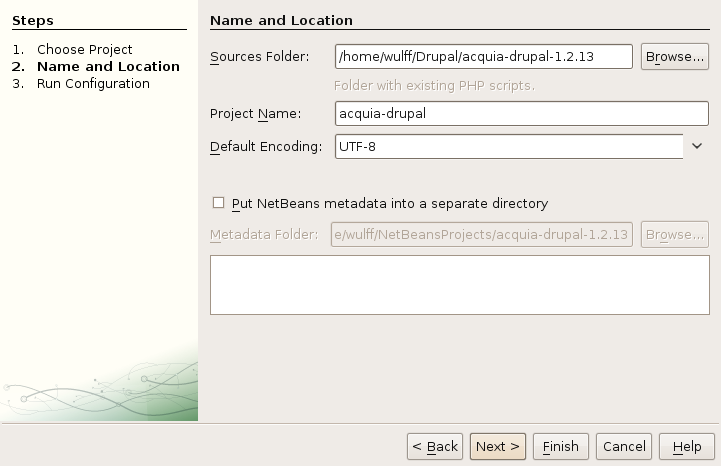

• Select the root folder of your Drupal project and choose a name for your project. In most cases it’s easiest to let NetBeans store the metadata in the Drupal root directory since you can just tell your VCS to ignore this folder.

• Choose Run as Local Web Site and enter the local URL you use to access the site

• Go to Tools → Options
• On the PHP tab uncheck the box “Stop at the First Line” to make sure the debugger only stops if you have set one or more breakpoints.

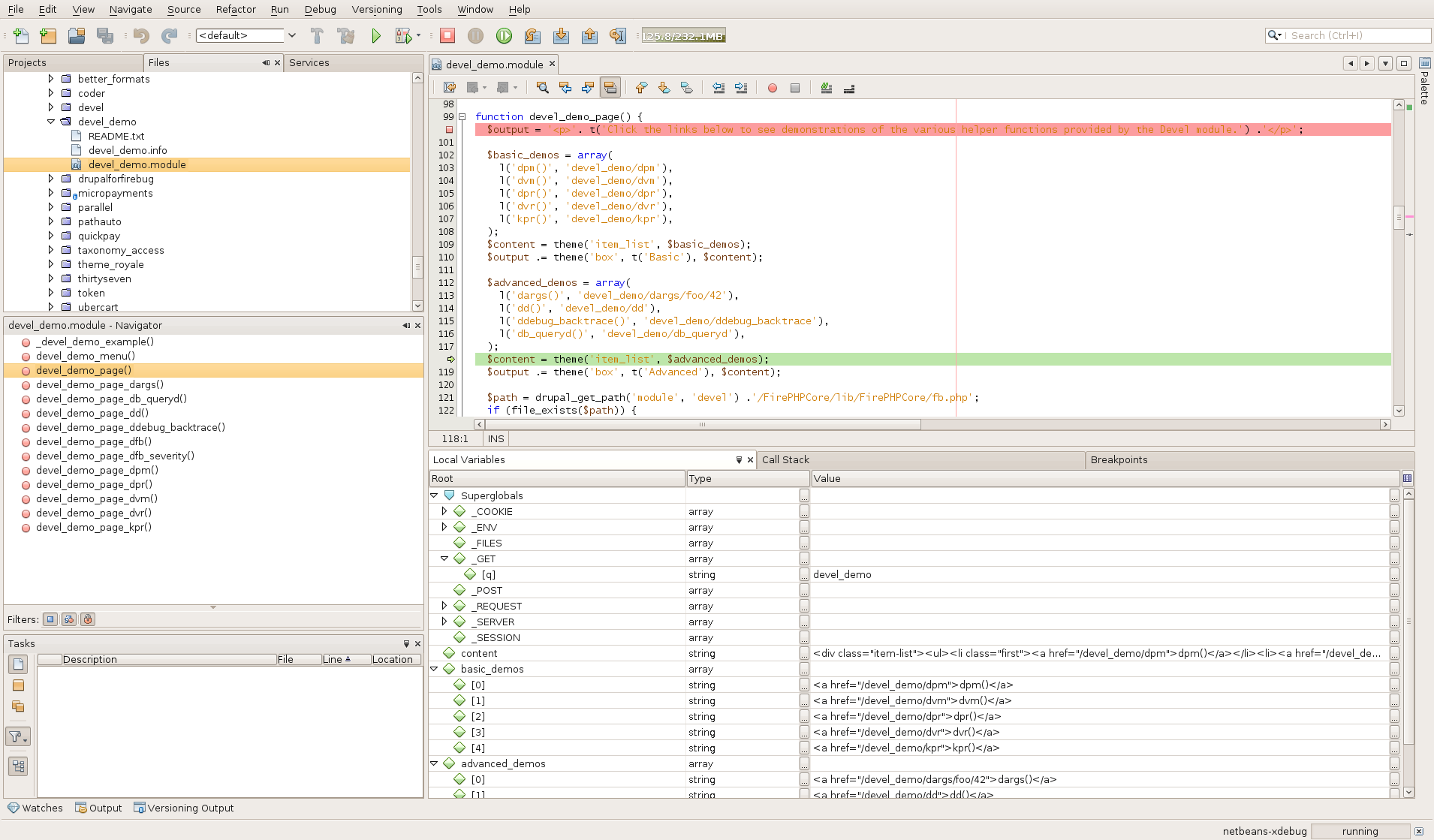

Start debugging

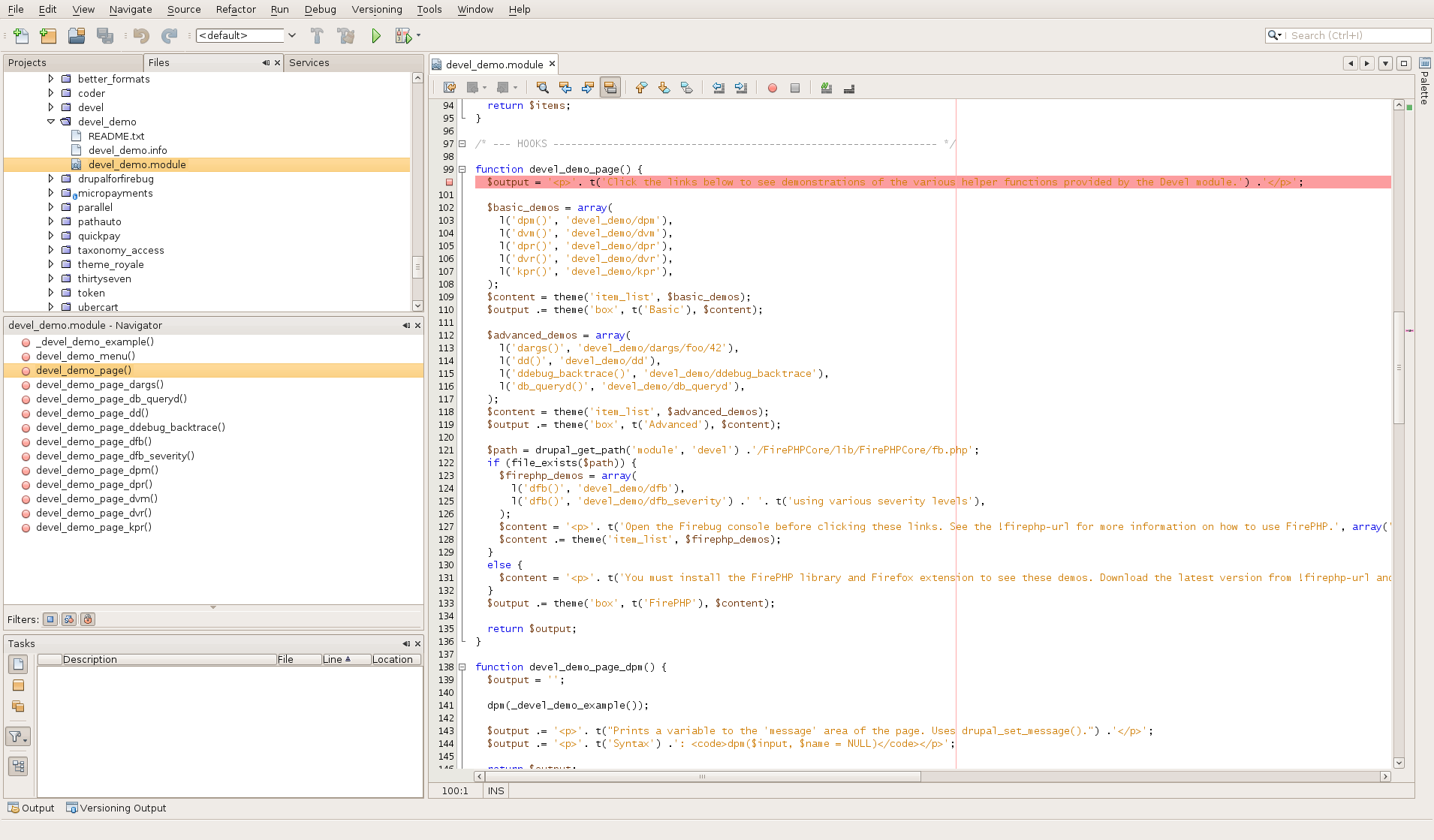

• Open the file you wish to debug
• Add one or more breakpoints by clicking on a line number in the margin or by pressing CTRL+F8.

• Choose Debug → Debug project or press Ctrl+F5

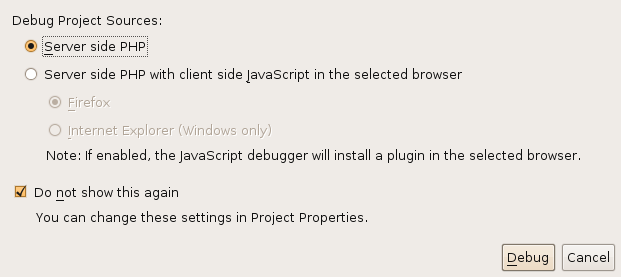

• Choose Server side PHP and click Debug. Check the box “Do not show again” if you don’t want to be presented with this dialog every time you start the debugger.

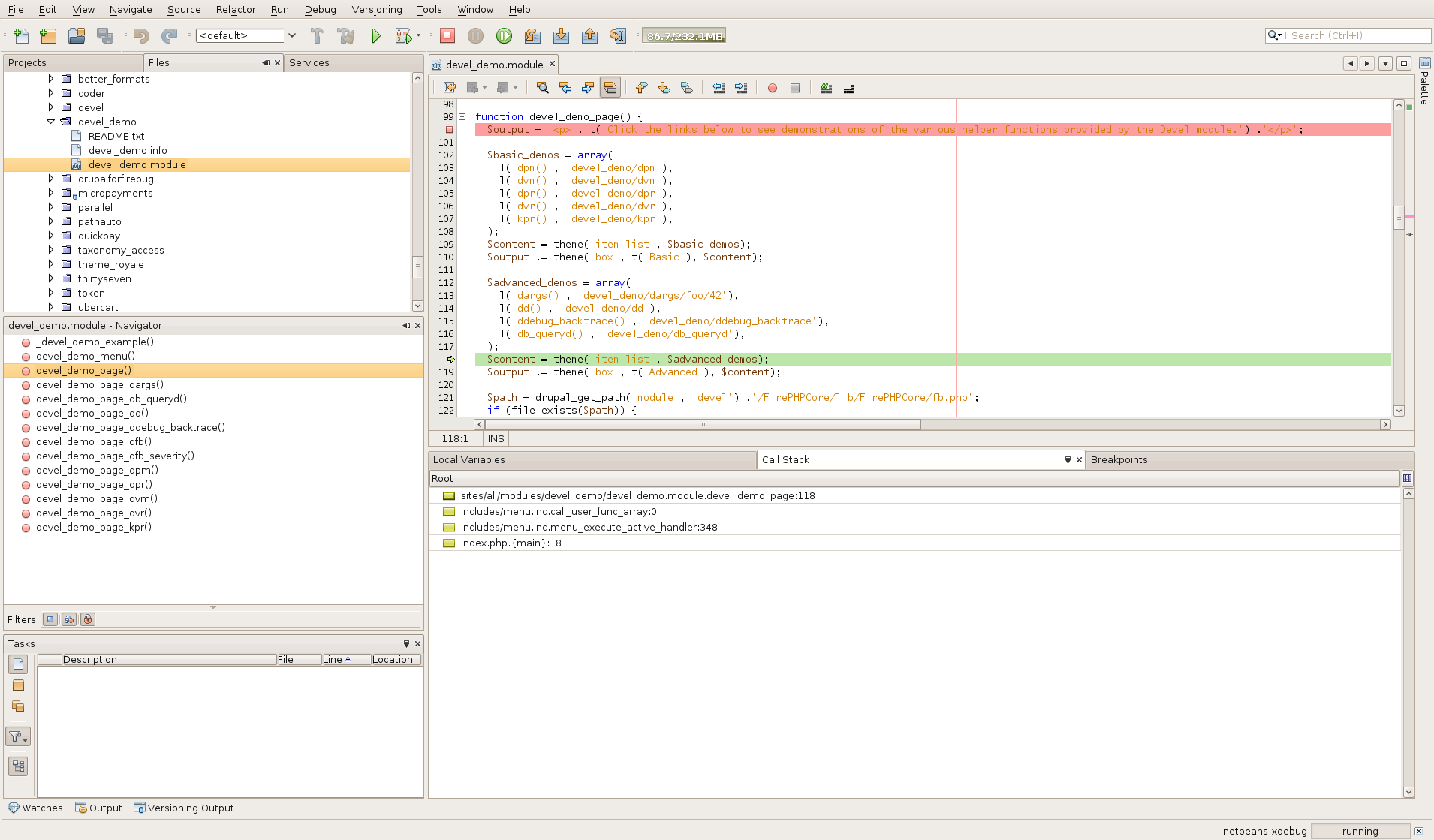

The Call Stack tab shows the current position in the call stack.

You can add more tabs by going to the Window → Debugging menu in NetBeans.

Keyboard shortcuts

Use the following shortcuts to step through the code when running under the debugger:

Profiling with Xdebug

In addition to its basic use as a debugging tool, you can also use it to profile your code. This is a two-step process: First you use Xdebug to generate a cachegrind output file. Then, you use a tool like Webgrind to analyze the output file.

If you have Xdebug installed and configured, you can enable profiling by adding this line to your xdebug.ini file:

xdebug.profiler_enable_trigger=1

The xdebug.ini file can usually be found in /etc/php5/conf.d/.

To create the cachegrind file, add an ?XDEBUG_PROFILE query parameter when loading a page on your site:

drupal.local/?XDEBUG_PROFILE

This generates a cachegrind.out.<pid> file in your /tmp directory.

To analyze the output file you can install a tool like Webgrind on your local web server:

• Get the latest copy of Webgrind.
• Install it in a local directory and create a virtual host for it, so you can access it at http://webgrind/.

When you access the Webgrind frontpage, you can use the dropdown box at the top of the screen to select the cachegrind file you want to analyze.

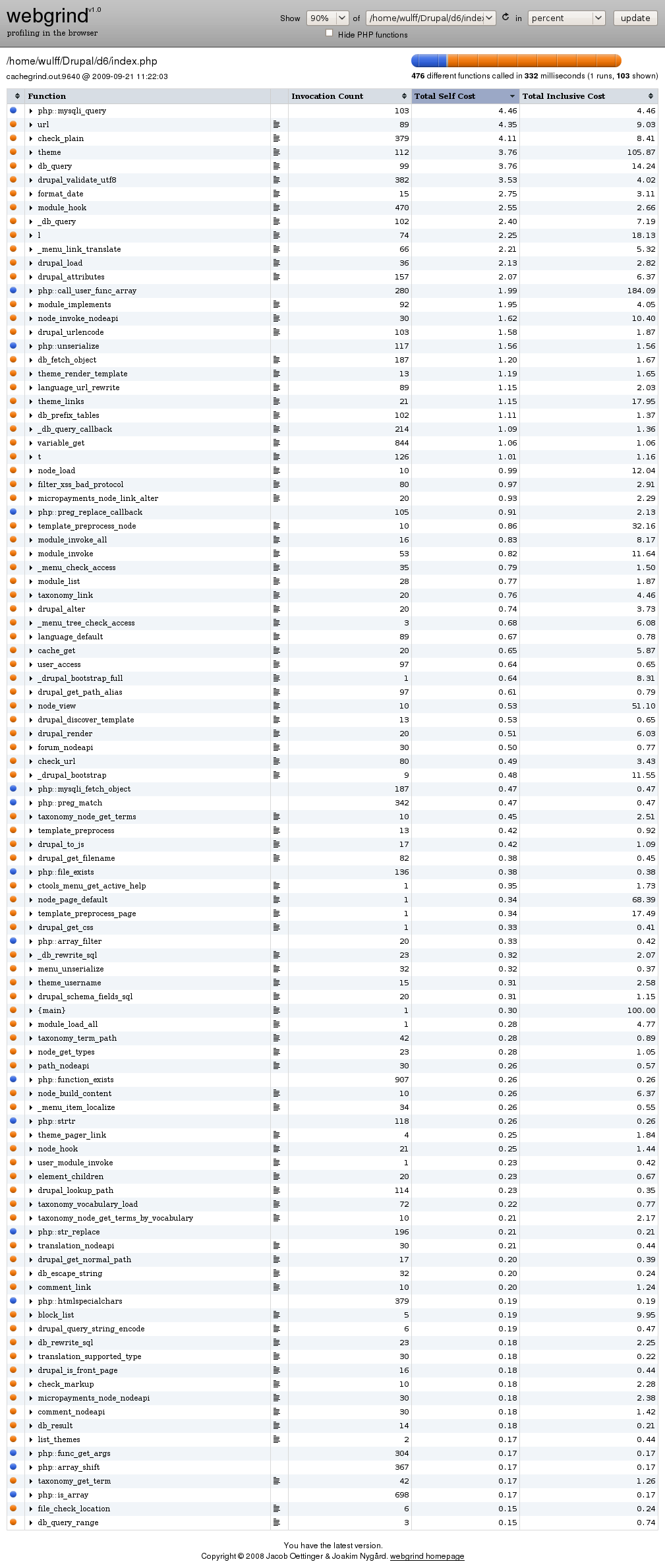

After processing the file webgrind displays a list of all the functions which where called to build the current page. See the screenshots below for example output.

Final words

Links to other resources:

• Drupal Debugging
• Quick-and-Dirty Debugging
• Resources and links on debugging, tracing and profiling Drupal

Obsolete debugging tools:

• Drupal For Firebug.
• Variable dumper krumo was in Devel for Drupal 7.
